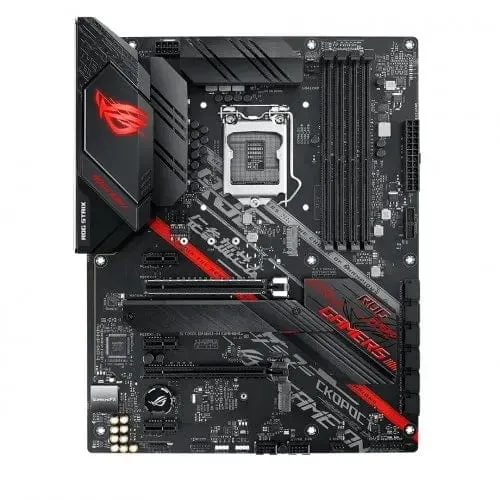

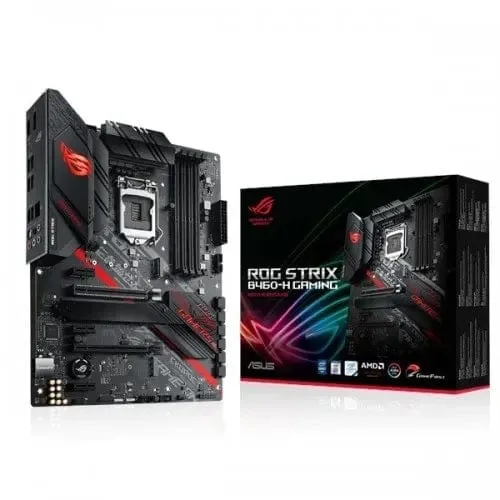

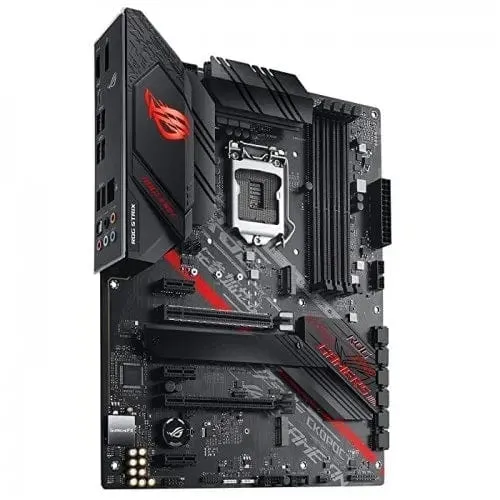

Name: ASUS ROG STRIX B460-H GAMING LGA 1200 Intel B460 SATA 6Gb/s ATX Intel Motherboard
SKU: 701737

LEARN MORE ABOUT THE ASUS STRIX B460-H GAMING

Question about the product info?

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors * Refer to www.asus.com for CPU support list
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel B460

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b * Graphics specifications may vary between CPU types. ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Memory
Number of Memory Slots	4×288pin
Memory Standard	DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	Intel 10th Gen Processors 1 x PCIe 3.0 x16 Intel B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) * * The PCIEX16_2 shares bandwidth with the PCIEX1_1 and PCIEX1_3. When PCIEX16_2 runs x4 mode, PCIEX1_1 and PCIEX1_3 will be disabled. The PCIEX16_2 will run x2 mode when PCIEX1_1 or PCIEX1_3 is occupied.
PCI Express x1	3 x PCIe 3.0 x1 * * The PCIEX1_1 and PCIEX1_3 share bandwidth with PCIEX16_2. The PCIEX1_2 shares bandwidth with M.2 slot (Key E).
Other Slots	M.2 slot only (Key E) (Support PCIe interface)* * Wi-Fi module is sold separately.

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	Intel B460 Chipset: 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)* 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) * When M.2_1 is operating in SATA mode, SATA6G_1 will be disabled.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	ROG SupremeFX Surround Sound High Definition Audio CODEC
Audio Channels	7.1 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	10/100/1000Mbps

Rear Panel Ports
Back I/O Ports	1 x Intel I219-V 1Gb Ethernet 1 x DisplayPort 1 x HDMI 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 6 x USB 3.2 Gen 1 1 x Optical S/PDIF out 5 x Audio jack(s)

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x Thunderbolt header(s) 1 x System panel connector

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

Features
Features	Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Software Features: [ROG Exclusive Software] - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility: TurboV EVO, EPU, Digi VRM, Fan Xpert 4 - EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features: Extreme Engine Digi - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C connector BIOS: 128MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit

Packaging
Package Contents	Accessories: User's manual 4 x SATA 6Gb/s cable(s) 1 x pack of cable tie 1 x Supporting DVD 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x M.2 SSD screw package(s) 1 x M.2 Key E screw package(s) 1 x M.2 Rubber Package(s)
